Appendix A to Subpart C of Part 178 — Illustrations: Cylinder Tensile Sample The following figures illustrate the recommended locations for test specimens taken from welded cylinders:

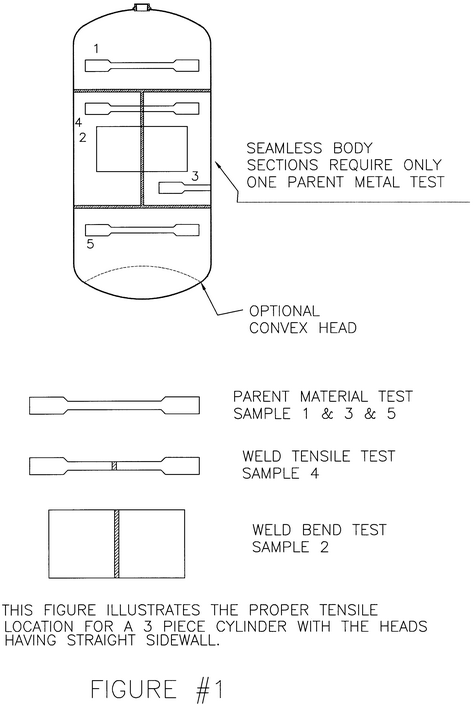

FIGURE #1

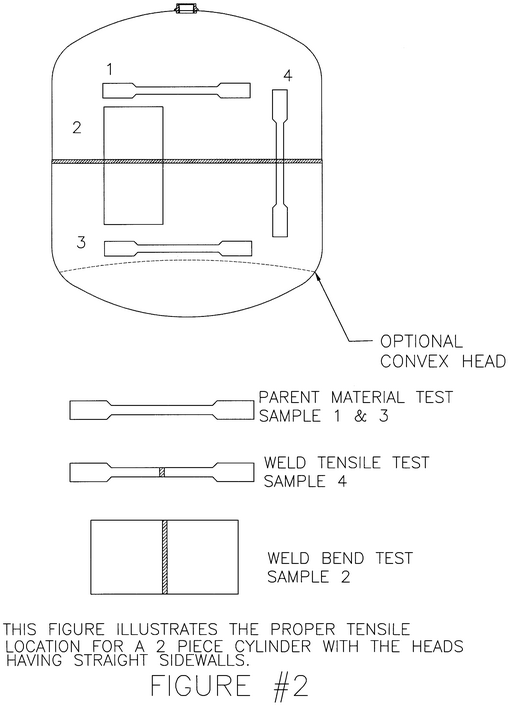

FIGURE #2

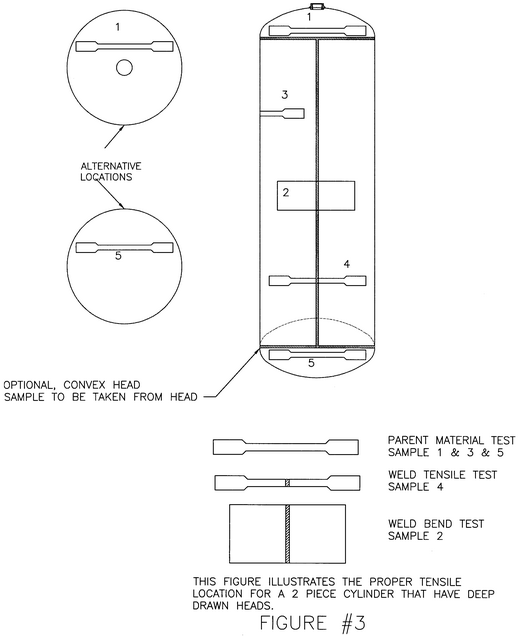

FIGURE #3

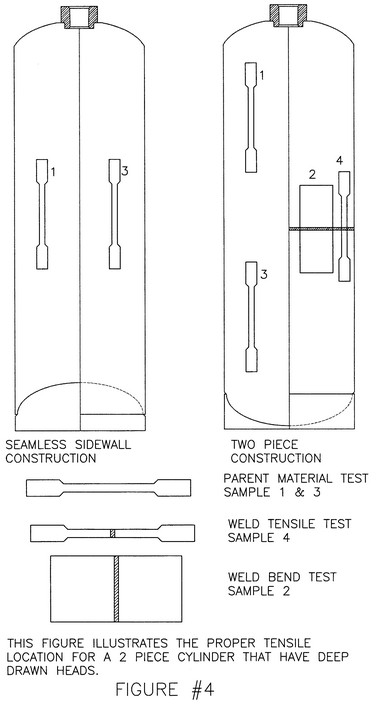

FIGURE #4

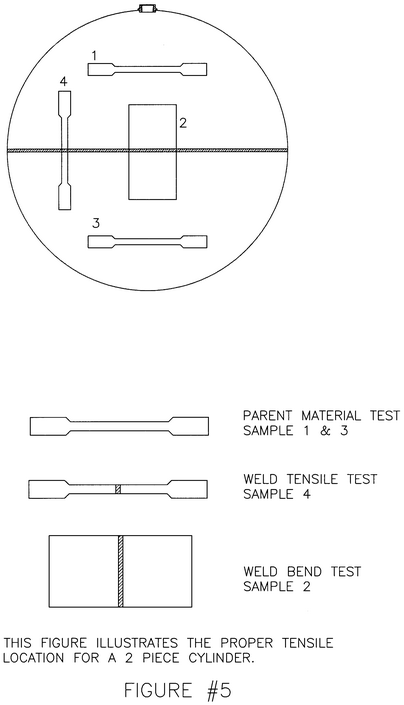

FIGURE #5
[67 FR 51654, Aug. 8, 2002]
