Appendix Fto Subpart P of Part 1926 — Selection of Protective Systems The following figures are a graphic summary of the requirements contained in subpart P for excavations 20 feet or less in depth. Protective systems for use in excavations more than 20 feet in depth must be designed by a registered professional engineer in accordance with §1926.652 (b) and (c).

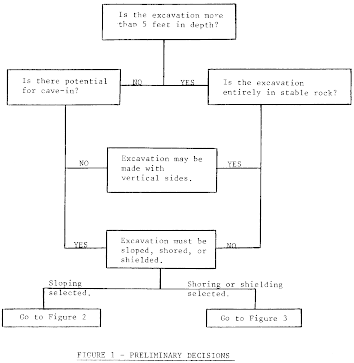

Figure 1. Preliminary Decisions

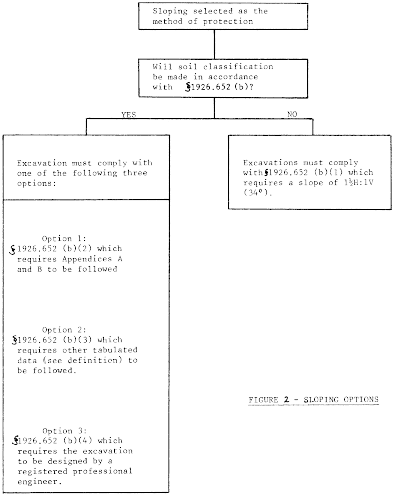

Figure 2. Sloping Options

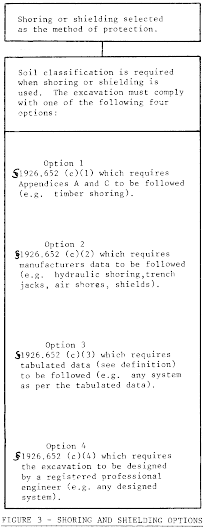

Figure 3. Shoring and Shielding Options
