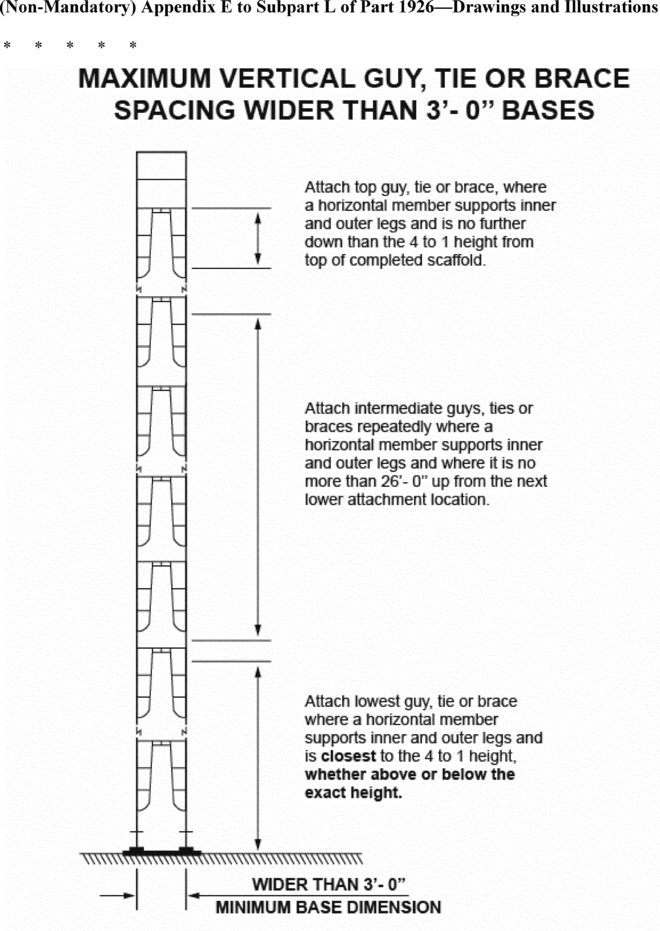

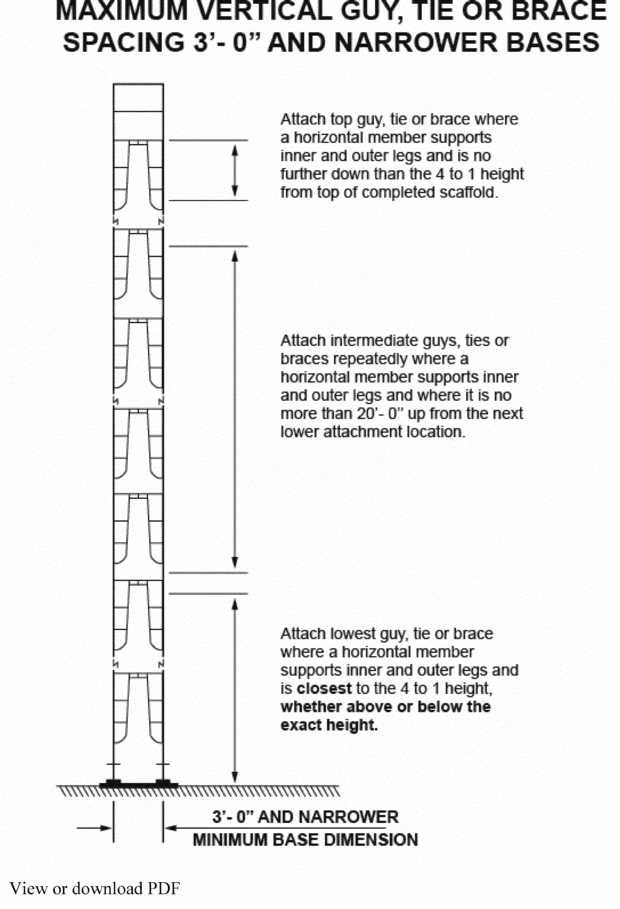

Appendix Eto Subpart L of Part 1926 — Drawings and Illustrations (Non-mandatory) This Appendix provides drawings of particular types of scaffolds and scaffold components, and graphic illustrations of bracing patterns and tie spacing patterns.
This Appendix is intended to provide visual guidance to assist the user in complying with the requirements of subpart L, part 1926.

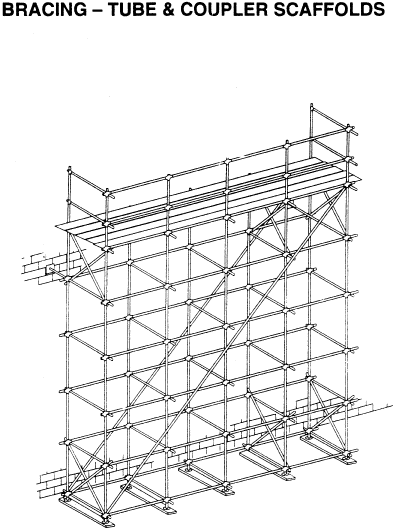

Figure 1. Bracing — Tube & Coupler Scaffolds

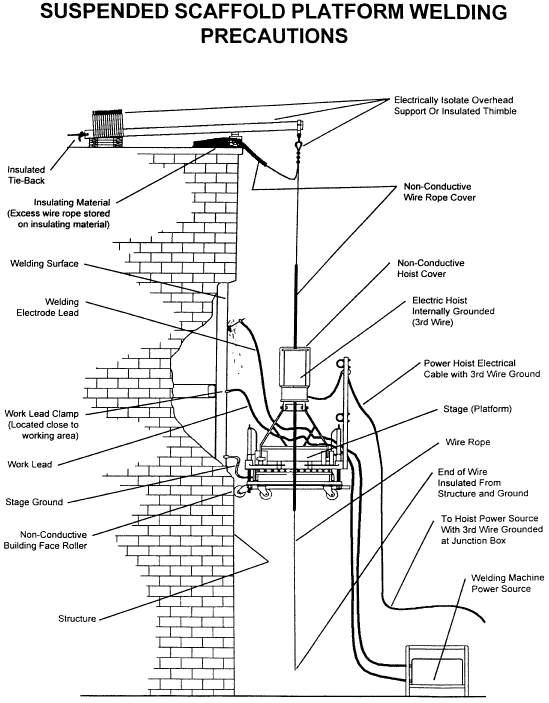

Figure 2. Suspended Scaffold Platform Welding Precautions
HOISTS MUST BE ELECTRONICALLY ISOLATED FROM SCAFFOLD

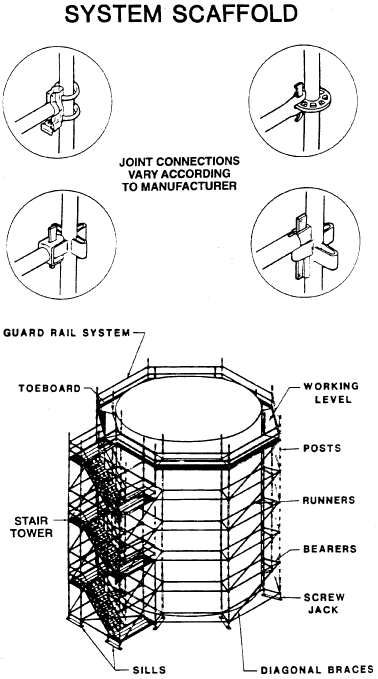

Figure 5. System Scaffold
Figure 6. Grade Stamps

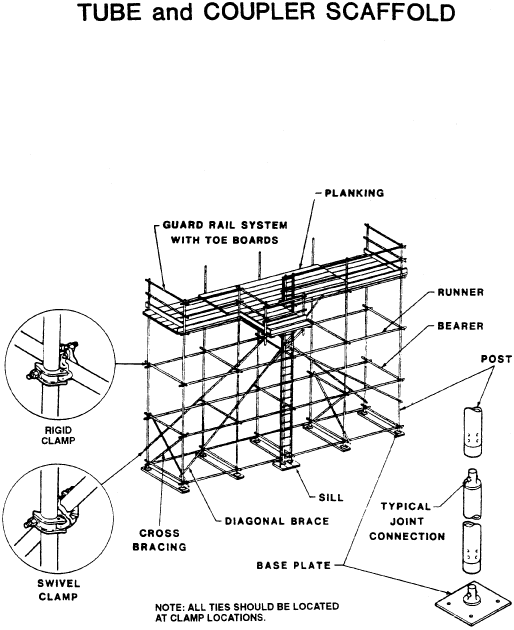

Figure 7. Tube And Coupler Scaffold

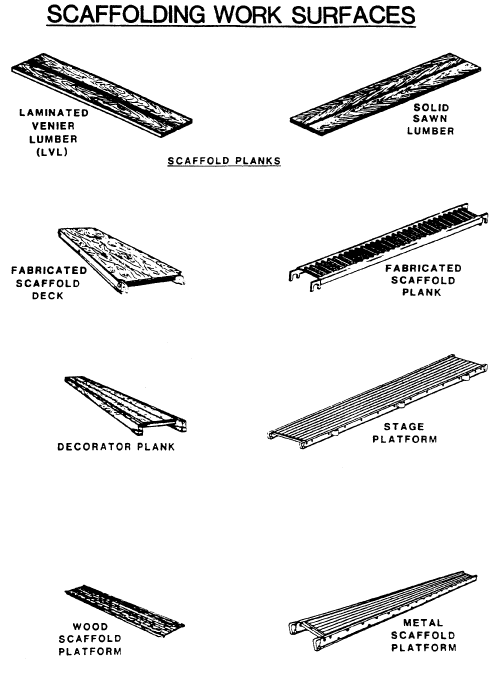

Figure 8. Scaffolding Work Surfaces

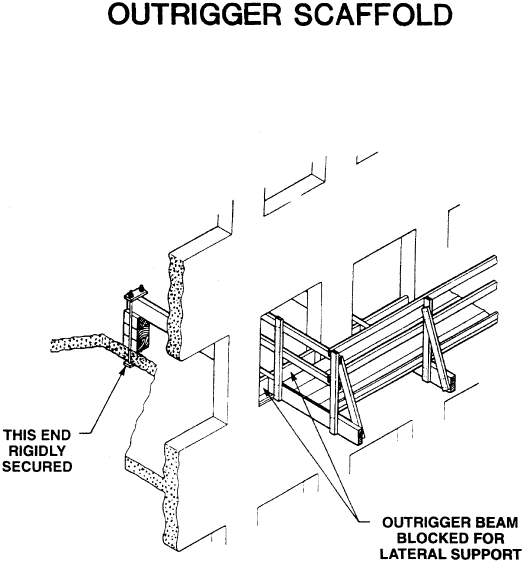

Figure 9. Outrigger Scaffold
[61 FR 46122, Aug. 30, 1996; 61 FR 59832, Nov. 25, 1996]
