Appendix Cto Subpart R of Part 1926 — Illustrations of Bridging Terminus Points: Non-mandatory Guidelines for Complying With §§1926.757(a)(10) and §1926.757(c)(5)

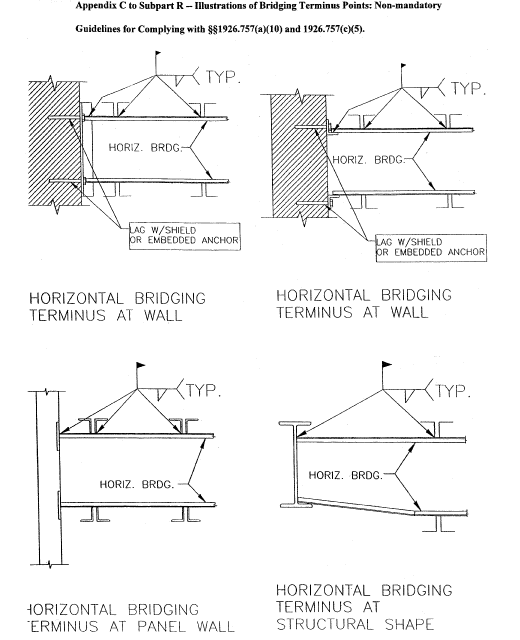

Horizontal Bridging Terminus At Wall

Horizontal Bridging Terminus At Panel Wall

Horizontal Bridging Terminus At Structural Shape

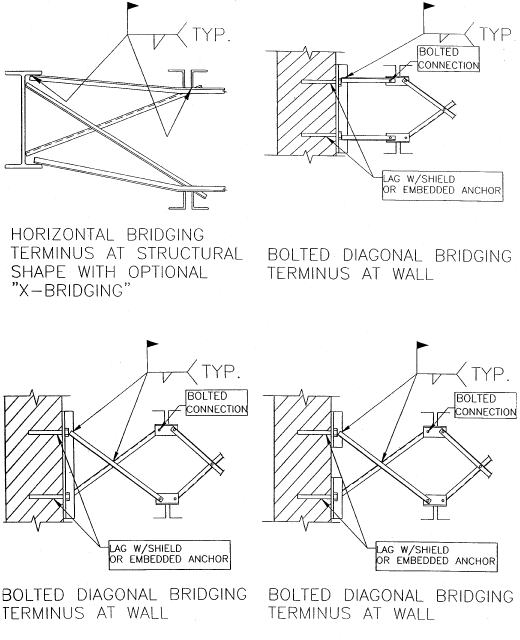

Horizontal Bridging Terminus At Structural Shape With Optional "X-Bridging"

Bolted Diagonal Bridging Terminus At Wall

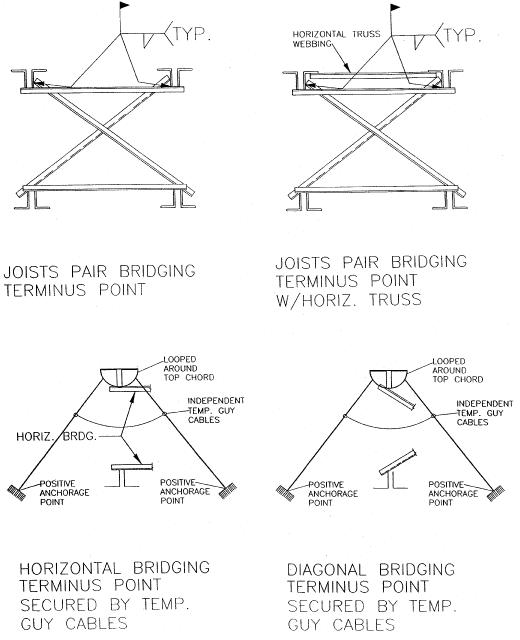

Joists Pair Bridging Terminus Point

Joists Pair Bridging Terminus Point With Horizontal Truss

Horizontal Bridging Terminus Point Secured By Guy Cables

Diagonal Bridging Terminus Point Secured By Temp. Guy Cables
